# Dashboard Editor

Dashboards show the most important results from a survey on one page, or give leaders at-a-glance metrics for an ongoing survey. Site Admins build them in the Dashboard Editor and share them as a webpage or a PowerPoint export.

{% hint style="info" %}
**Admin access required.** The Dashboard Editor lives on the Admin pages, which Site Admins can access. Report Viewers and Restricted Report Viewers see the finished dashboard, not the editor.
{% endhint %}

{% hint style="info" %}
**Decide the story first.** Before you configure a dashboard, decide what you want the data to say. We strongly suggest speaking with your Project Manager or consultant before you publish a dashboard for your survey results.
{% endhint %}

***

## Overview video (9m 16s)

{% embed url="<https://vimeo.com/1050048161?share=copy#t=0>" %}

***

## Build a dashboard

1. Navigate to **Admin** > **Results** > **Survey Title** > **Dashboard**.

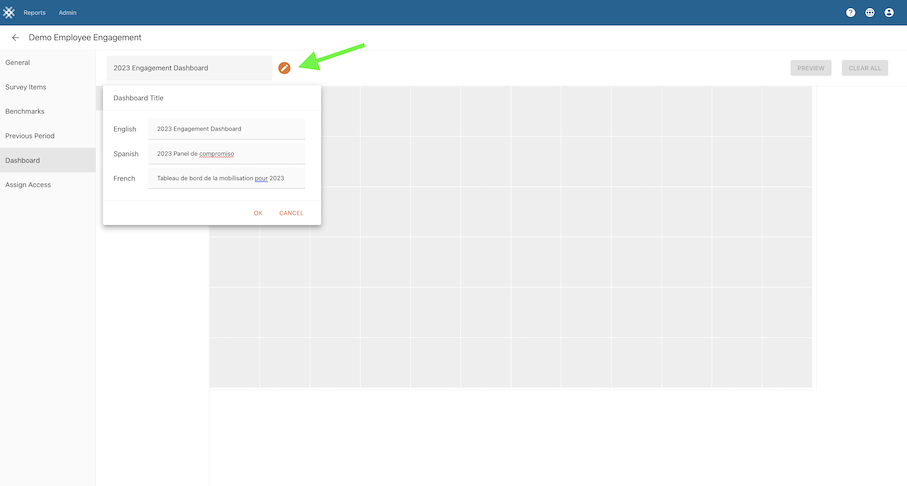

2. Enter a title for the dashboard. It appears on the dashboard webpage and in the export.

<figure><img src="https://2141019757-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBpBg0aV8RJEUOP2B5Hh4%2Fuploads%2FEp5smT0aDiQwGTPpXYxY%2Fdownload.png?alt=media&#x26;token=cb7f1a78-2222-463b-8a02-d590e7b67a16" alt=""><figcaption></figcaption></figure>

3. Click a cell type in the second column, then drag and drop it anywhere on the editor grid.

<figure><img src="https://2141019757-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBpBg0aV8RJEUOP2B5Hh4%2Fuploads%2F0fphGdBcFkjSrLNaOg76%2Fdownload%20(1).png?alt=media&#x26;token=92d3d508-bc42-4466-b395-79a0920a143b" alt=""><figcaption></figcaption></figure>

4. Click the **pencil** icon in a cell to set its size, survey dimension, title, and other options. Click the **trash can** icon to remove a cell from the grid.

<figure><img src="https://2141019757-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBpBg0aV8RJEUOP2B5Hh4%2Fuploads%2FaX2MouvXrIRscVbBX9zV%2Fdownload%20(2).png?alt=media&#x26;token=7cd1189a-822f-45ab-9095-e50ebded8ac6" alt=""><figcaption></figcaption></figure>

5. Add another cell and repeat step 4 until the dashboard tells the story you planned.
6. Click **Review** to see a PowerPoint export of the results.

***

## Editor tips

* A cell with a **dashed outline** has no content yet. Click the pencil icon to edit it.

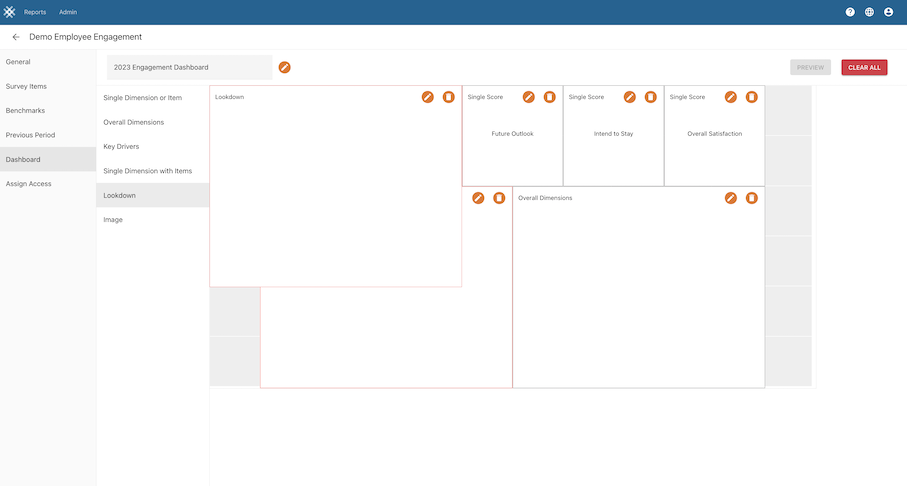

* A cell with a **red outline** overlaps another cell. Drag it until the outline turns grey. Overlapping cells do not show on the dashboard webpage or in the export.

<figure><img src="https://2141019757-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FBpBg0aV8RJEUOP2B5Hh4%2Fuploads%2F4cWoqrNH7o1utqdYblPL%2Fdownload%20(3).png?alt=media&#x26;token=ba6ece19-5cfb-4e11-a1a5-ecebabd97173" alt=""><figcaption></figcaption></figure>

* Work with Compass open on two screens: the editor on one and the dashboard webpage on the other. Make a change in the editor, then refresh the webpage to see it.

***

## Dashboard confidentiality

Dashboards follow the same confidentiality rules as every other Compass report. For the full picture across reports, see [Confidentiality and Permissions in Compass](/knowledge-base/step-5-analyze-interpret-and-report/compass-reports/confidentiality-and-permissions-in-compass.md).

* **Minimum group size.** No group is reported on with fewer than 5 responses. This applies to dashboard cells as well as the Snapshot and Heatmap reports.
* **Restricted demographic fields.** A demographic field with **Restrict Access** toggled ON is hidden from Restricted Report Viewers in dashboards, as it is in every other report view. See [Hide Demographics from Restricted Users](/knowledge-base/step-5-analyze-interpret-and-report/compass-admin/results/general/hide-demographics-from-restricted-users.md).
* **Restricted Report Viewers** see the dashboard for the group they are assigned to. See [Assign Access](/knowledge-base/step-5-analyze-interpret-and-report/compass-admin/results/assign-access.md).
* **Filter-similarity blocking** is a Snapshot report control. See [How does report filter confidentiality work?](/knowledge-base/step-5-analyze-interpret-and-report/compass-reports/reporting-faq/how-does-report-filter-confidentiality-work.md).

{% hint style="info" %}
**Ranked choice questions** do not appear as a dashboard cell or in the dashboard export. See [Ranked Choice Questions](/knowledge-base/survey-design-and-deployment/creating-surveys-quick-start/ranked-choice-questions.md).
{% endhint %}

***
